Every metal, piece of concrete, and the hard surface can have impurities removed with a shot blasting machine.
Metal furniture, pipes, and other items can be kept sturdy and functional with the help of a shot blasting machine.
The material is revitalized and given a fresh appearance with a shot blaster.
The majority of the time shot blasting equipment is used for cleaning surfaces of paint, dust, rust, and other contaminants.
Product Details
Shot blasting machine is commonly used in automated surface treatment and casting finishing. Shot Blasting Machine turbines, which consist of a separating rotor, an adapting sleeve, and a propelling rotor equipped with blades, generate and shape the stream of steel shots in shot blasting processes. The quality of shot-treated surfaces is determined by the unit's actual design and operational parameters, while the values of relevant parameters are associated with the geometry of turbine components and the level of integration with the separator system. The circulation of blasting medium becomes an integrating factor of the process line, beginning with the hopper and progressing through the propeller turbine, casting treatment, separation of contaminated abrasive mixture, recycling, and reuse.
Shot Blasting Process
The method of pushing abrasive media material with centrifugal or mechanical force is known as "shot blasting". Shot blasting process uses a different type of pressurization than sand blasting. A device that looks like a spinning wheel is used to centrifugally accelerate shot-like material and blast it against a surface in this abrasive treatment process. Compared to sand blasting, shot blasting machine process is a significantly more aggressive abrasive method. It's typically used to clean and prepare larger and more challenging preparation objects that require a high application force and a denser media substance. Shot blasting also necessitates rigorous containment since the force of the blasted shot may cause collateral damage if the operation is not contained.
Shot blasting centrifugal abrasion treatment is commonly used in large-scale activities. That could be in shot blasting tanks, where steel shot or grit blasts rough surfaces such as rebuilt automotive frames or recycled steel containers. Shot blasting is also used at work when engine components need to be peened to promote malleability.
Shot Blasting Equipment
Shot blasting Equipment is ineffective because of poor quality abrasive steel shot and insufficient purity of the abrasive mixture. However, most practitioners underestimate the significance of proper diagnostics of the shot blasting process in industrial settings. The wear of major machine components and blasting stainless steel shot, as well as the quality of shot-treated surfaces, are frequently misinterpreted, highlighting the need to consider all factors involved in the process within the framework of a comprehensive methodology.
The Automatic shot blasting machine makes use of a mechanical method of propelling abrasive media using a radial wheel to remove a layer of the surface and contaminants from the surface of metal and steel products. There are three basic designs that require the necessary blast before finishing the product:
It cleans and descales the surfaces
Enhances paint adhesion by adding texture to the surface of metal products
Efficiently reduces maintenance costs by increasing the life of the thermal spray gun coating
Shot blasting machine working principle
A shot blasting machine is used to remove unwanted corrosion and metallic waste on the surface of finished goods. This is done for making the surface uniform and to make it smoother for a better finish after paint or other applications. The process also works for cleaning rust, the roughness of the surface, and further fabrication. The shot blasting hopper is used for cleaning the rough edges of different parts of an automobile or any other molding parts that have sharp surfaces and are uneven.
As part of this technique of blasting, a controlled stream of abrasive shot material is moved towards the metallic or steel exterior that needs to be shot blasted with. There is a blast wheel that is placed at the heart of the machine. As soon as the rotation of the wheel starts, the metallic abrasives or the shot media are channelized towards its center.
From this position onwards, the abrasives are accelerated and hurled into the direction of the surface which is being prepared for finishing. After the completion of this process, the contaminants, as well as the media, make a rebound into a separation system that contains the dust collection system. Just like the name suggests, the dust collector is responsible for collecting or removing the media that is pulverized, contaminants, or dust. The remaining media gets recycled by returning it to the storage shot blasting hopper where the particles can be kept for use in the future.
Types of Shot Blasting Machine
Shot blasting is the process of propelling abrasive particles onto surfaces that are being finished. To generate centrifugal force and blast abrasives like steel shot and steel grit on items, this equipment employs a specifically constructed and precisely regulated wheel. Rather than "blowing" media at a surface, this method includes "throwing" it at it. The following is a list of common shot blasting equipment:

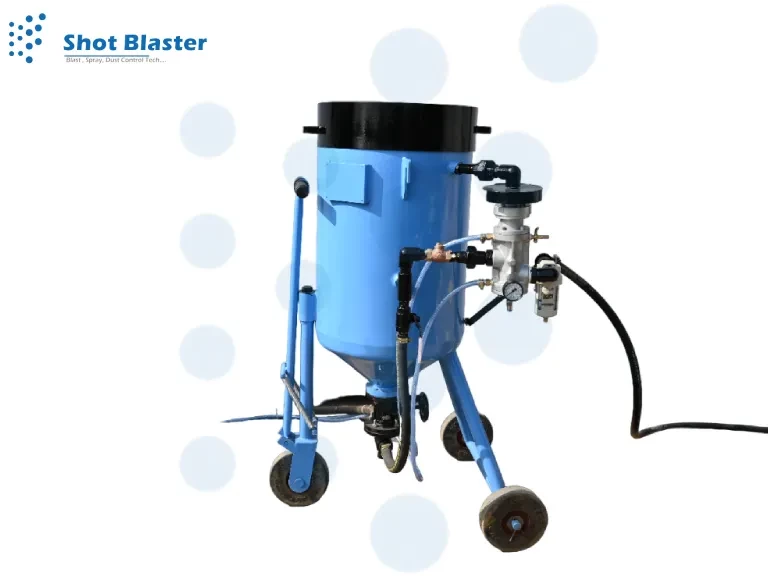

Portable Type Shot Blasting Machine: Portable shot blasting machine or Mobile shot blaster are used in a variety of industries, including auto repair, paint shops, powder coating, floor and surface cleaning service providers, and many others. Sand, Aluminum Oxide Grit, Copper Slag, Glass Beads, Steel Shots, Steel Grits, and other media can be used in a portable shot blasting machine depending on the requirement and the surface that needs to be smoothened, roughened, or cleaned.

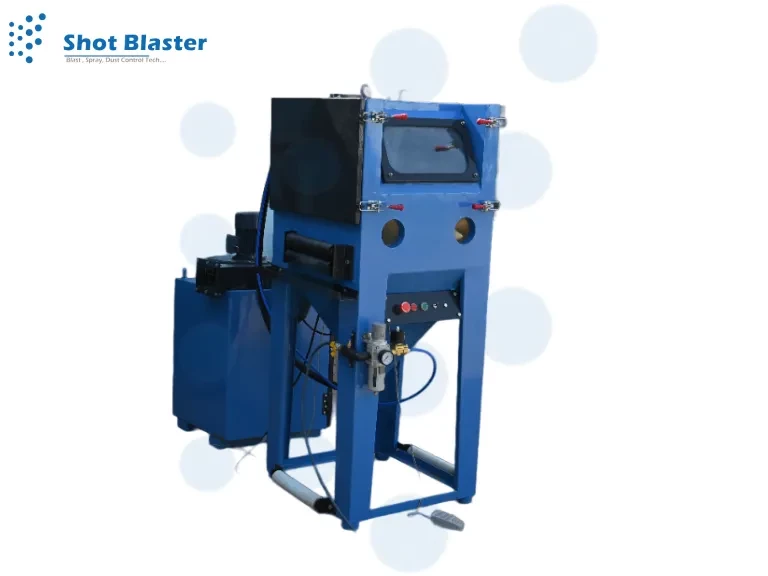

Cabinet Type Shot Blasting Machine: The blast media is pneumatically accelerated by compressed air and projected onto the component by nozzles in a shot blast cabinet. The shot blasting cabinet operates on direct pressure blasting, induction suction blasting, and slurry pumping principles. The abrasives are introduced using compressed air, so the blasting is done with guns. This entire process takes place in closed chambers, ensuring safety and dust-free blasting. The cabinets are made of heavy gauge mild steel to withstand abrasive bombardment. In the chamber, the abrasives are collected and recirculated. Dust bags are also provided to separate the abrasives from the dust and debris. Manual and motorized shaking is used to shake Dust Bags.
Tumble Shot Blasting Machine: Continuous blasting cycles with continuous abrasive recycling are possible with tumble blasting. Rubber belts and steel flight models in various sizes are built into these devices.
Spinner Hanger Shot Blasting Machine: These direct drive blast wheels have revolving spindles that enable continuous loading and unloading of abrasive media.
Hanger Blast Equipment: For specific shot blasting activities, blast systems can be mounted with trolleys and hung on manual Y-track monorails.
Roller Conveyor Shot Blasting Machine: Roller conveyor shot blasting machine are designed specifically for blast cleaning very long and flat parts like large area metal sheets and I-beams. They're also excellent for shot blasting low-profile weldments. A special forced drive roller conveyor system transports the components through the machine (typically an entrance vestibule, a blasting chamber, and a blow off/brush-off chamber). The travel speed varies. On blasted components, shot blaster offers turnkey preservation lines for spraying a welding primer or a total surface coating. Your raw materials can be pretreated, derusted, and coated with a high gloss paint in a single process, regardless of their condition.
Cylinder shot blasting Machine: Shot blasting equipment is specifically designed to remove rust and old paint off all types of metal cylinders.
Rotary shot blasting machine: The rotary shot blasting machine or table type shot blasting machine is appropriate for a variety of shapes and dimensions, casts, forged parts, pressed parts, steel and non-ferrous metal parts, and parts made from fragile materials, cleaning the surface, removing casting sand and filings, consolidating the surface (micro handling), roughing the surface before coloration, and so on. Single rotary table shot blasting machines and swing table shot blasting machines are the two types of rotary shot blasting machines. The swing table shot blasting machine has a much higher efficiency than a single rotary table shot blasting machine.
Swing Table Blast Wheels: For loading and unloading abrasive media, direct drive blast wheels swing out.
Continuous shot blasting machine: Shot blasting machines with wire mesh. These machines shot blast all of the parts' surfaces. This machine has the advantage of providing continuous shot blasting of complicated parts that require free-handling shot blasting. Depending on the complexity of the part, they can adapt to different widths and a variable number of turbines. The wire mesh is made of abrasion-resistant steel. Shot blasting machines with rubber belts These are particularly useful for parts that cannot withstand impacts and only require treatment on one side. They are typically used to enhance the appearance of all types of artificial and natural stone. They can treat tile, parts with multiple surfaces (steps, pillars), and boards using various configurations.
Shot Peening Machine: Shot peening machine is a process used to improve the fatigue strength of components that are subjected to high alternating stress. It can aid in the prevention of fatigue cracks, corrosion, deteriorated strength, and premature fatigue caused by machining and forming metal parts, which also causes internal stress concentration. It also aids in the prevention of crack formation and growth, as fatigue cracks typically begin at an imperfection on the material's surface.
Floor Shot Blasting Machine: A floor shot blaster is a shot blasting machine used to clean concrete floors and steel plates. The floor shot blasting Machine can remove floatation and impurities from the concrete's surface all at once. It can also roughen the surface of the concrete road, making it more uniform and rough, which improves the adhesion strength of the waterproof layer and concrete base. As a result, the waterproof layer and bridge deck can work together much better.
Shot blasting Machine Features
High efficiency: Special impeller structure, blasting efficiency reaches 16-19 kg/min•kw.
Protective liner and sealing: the top cover has cast iron and wearable rubber two layers of strength and sealing.
Low noise: The blast wheel bottom has to cushion rubber, which can reduce vibration.
The runner wheel uses 40 Cr metal carburized and quenched. After processing, a runner needs to be under balance detection.
To keep precision and good balance when it rotates at high speed, all key machining parts are done by the CNC center.
Eight blades are very easy to remove, only needs 5 to 10 minutes to replace 8 pieces of
At the same time, you can also check the abrasion status of the impeller and control
The material of the blades, control cage, the impeller is a high chrome alloy, which has a long service life.
The weight difference between each piece of the blade is less than 8 grams, which keeps the wheel has a good balance performance.
It uses two dish impeller wheels, short and high throw ability.
Meanwhile, it is mandatory to buy a shot blasting machine from the best shot blasting machine manufacturer who can avail all the above-mentioned features for your company.
The material used in Shot Blasting Machine
Industrial Shot Blaster Machine chamber uses 8mm thickness steel platters and the protection liner for direct
The blasted area is 10mm thickness SPMn13 steel floorings.
The front and back chamber uses 5mm diameter steel plates, near the blast room area,
We install a 65Mn steel plate for protective purposes.
Bucket elevator and separator use 4mm thickness steel plates.
Roller uses a diameter of 121mm seamless steel pipe, a thickness of 6mm.
Metal ducting for dust collector,2mm thick steel plates.
PL frequency inverter is Mitsubishi or Omron, other electric components use CHINT
Shot Blasting Machine in India
We are the Manufacturers & suppliers of the best sand blasting machine, grit blasting machine & shot blasting machine in India at a low price. Their well-qualified and experienced team ensures clients’ satisfaction with consignments that need special care during storage and packaging.
The process of industrial shot blaster also succeeds in scraping rust, the brutality of the facade, and further invention. The shot blasting machine for sale is used for smoothing the rough ends of alternative parts of a machine or any other accessory parts that have sharp exterior surfaces.
We are one of the preeminent shot blasting machine manufacturers in India. We implement shot blasting machines at low prices. All kinds of shot blasting machines are prefabricated and dispatched all over India by us. The price of the shot blasting machine manufacturer is best amidst all additional impermanent. Client attainment is our purpose like well-timed dispatch, the best cost for the machines, and well-timed co-operations of the machines.
Shot Blasting Machine price in India depends on the capacity of the abrasive tank & type of shot blaster hopper machine in India. The shot blasting machine price also depends on the cleaning rate of the shot blast machine. Shot Blaster is the best shot blast machine manufacturer in India. The portable shot blasting machine price is very affordable in Jodhpur, Rajasthan, India.
Shot Blasting Machine Manufacturers
We are is the leading Shot blasting machine manufacturers in India that offers the complete automatic sand blasting machine, Metalizing Gun, portable Shot blasting machine, pressure blasting cabinet, and abrasive media, shot blasting machine supplier. Our main focus is on customer satisfaction and timely delivery of our products.
Our products are meticulously inspected to ensure that you receive only the best. These are top-of-the-line Shot Blasting Machines and Spare Parts with a high level of durability and dependability. Our extensive industry experience, as well as our frequent introduction of new and enhanced machinery items for our valued customers, has allowed us to establish a strong foothold in this competitive market. Our Shot Blasting Machine Spare Parts are unparalleled in their dependability. Furthermore, we are dedicated to our clients' satisfaction, ethical business methods, and keeping up with technological changes. These enable us to overcome any obstacles in our path and assert our originality amongst others in the same industry. Our goal is to gain a competitive advantage by supplying higher quality products to our clients and earning their trust. Last but not least, our insatiable desire for the highest level of customer satisfaction keeps us one step ahead of our competition. They are noted for having characteristics such as wear resistance, corrosion resistance, efficiency, and long service life. Industrial Shot Blasting Machines, Steel Shots, Cut wire Shots in Stainless Steel SS, Aluminum, Brass, Glass Beads, Copper Slag, abrasive sand blasting, thermal spray gun are among the services we provide.
Shot blasting machine is an essential tool for surface preparation in various industries. These machines are designed to blast abrasive materials onto a surface to remove contaminants, rust, and other unwanted substances, leaving a clean, smooth surface for coating or painting.
