Reverse Pulse Jet, Fabric Bag & Cyclone Type Dust Collector
Fabric Bags / Pleated Filter
No. of Bags
1 - 20 Nos. (according to req.)
0.5 - 10 H.P.
200 - 1500 CFM
Manual / Automatic Shaking System
Collect Fine Dust During Sand Blasting
Bubble Wrapping / Box
Land / Sea / Air
A dust collector provides cleaner air to your facility, which has many benefits, by removing dirt, dust, debris, gases, and chemicals from the air.
Filtration of big to fine-sized particles is provided by dust collectors.
Environmentally friendly abrasive blasting is provided by dust collectors, protecting people and the environment from dangers.
A blower, a dust filter, a filter-cleaning system, and a dust receptacle or dust removal system make up a dust collector system, which is made to manage high-volume dust loads.
It differs from air purifiers, which eliminate dust using reusable filters.
Dust collectors are designed to capture the finest dust and fumes where ever you need them and whenever you need it most with sand blasting machine, shot blasting machine, and industrial purpose. The portable dust collectors are self-contained systems with a fully automatic pulse air cleaning arrangement. An automatic cleaning system uses compressed air blown through the filter in the reverse direction, dislodging smoke and dust from the filter. The solid pollutants are then collected in a dust drawer and emptied periodically. The self-cleaning system can be manually or automatically activated and maintains unit performance without excessive maintenance.
Types of Dust Collector
It can be broadly divided into the following categories
Pulse Jet Type: Dust is removed from the pleated filter bag dust collector using a high-pressure air blow. The blasting air penetrates the top of the Pleated Filter bag tube, halting the flow of filthy air for the time being. A wave of expansion travels along with the pleated filter bag as the air immediately collapses. The dust block that has formed over the pleated filter is shattered and released or broken as the bag flexes.
Features and Benefits of Pulse Jet Type Dust Collector
It is simple to use and handle.
The pleated filter bag is simple to install and remove.
It is necessary to use compressed air sparingly (for cleaning).
Even the tiniest dust particles are filtered effectively.
Motorized Shaking Type: A dust collector that uses a shaker cleaning system to remove the collected dust particles from the surface of the filter mechanisms by mechanically shaking the filter bags with the help of a motor is referred to as a shaker fabric filter.
Benefits of Motorized Shaking Type Dust Collector
The collection efficiency is really great.
It boasts the best air-to-cloth ratio.
Low maintenance costs because the machine is simple to operate.
After then, the online cleaning cycle runs for a set time period.

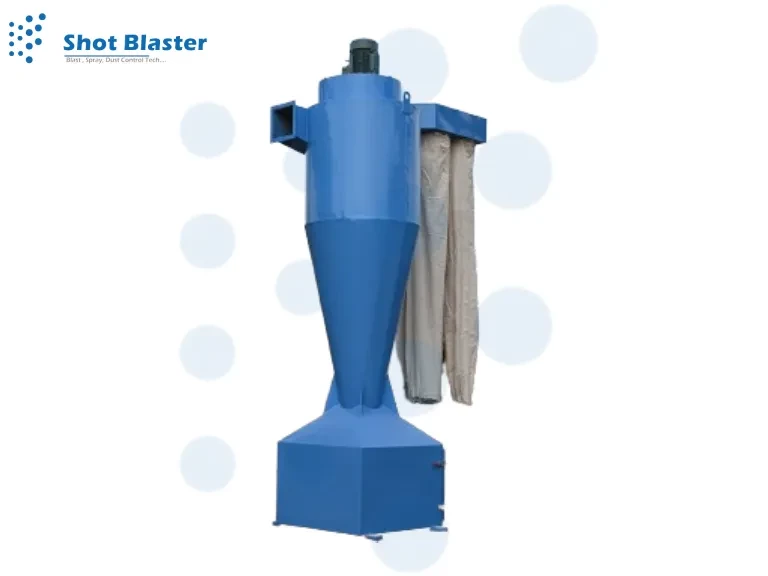

Cyclone Type: Due to the effect of the centrifugal force caused by the rapid circular flow of air, these dust collectors could spin at extremely high speeds. This centrifugal force propels dust particles against the cyclone system's wall.
Benefits of Cyclone Type Dust Collector
The Cyclone Type Dust Collector is segmented, allowing the cone component to be easily removed without having to replace the entire system.
Contaminants/particles are forced out of the air and down into the cone region by the internal helix. The effect of centrifugal force is studied.
The tapered cone section exists so that heavy particles can readily slide down due to its structure.
Features of Dust Collector
High suction and airflow Low noise level
Special design for suction hood Vibration-free
Fitted with adjustable sequential air pulsating arrangement
Suitable for dry and wet dust-generating application
High cleaning performance
Heavy-duty welded construction
wheels are conductive with brakes
Full-width handle for ease of movement
Easy access to filters
Low center of gravity to prevent tipping
Built-in spark trap
Single and Three-Phase regenerative motor/blower
Multiple motor voltages are available
Thermal overload for motor
Dust collector manufacturer in India
Shot Blaster is the best Dust collector manufacturer in India and has emerged as a prominent manufacturer of portable dust collectors, multi-cyclone, and all types of dust collectors. This range is designed using high-grade raw material, which makes it usable in rubber industries, plastic industries, machine shops, leather industries, and similar others. Ideal for purposes like critical dust or bulk dust material collection, this range is known for its compact construction. Its price depends on the ductwork, size, and installation. Find here its complete details like cost according to size, material, and installation. We also provide shot blasting machine & grit blasting machine at affordable prices.
Shot Blaster is the leading manufacturer, supplier, and exporter of different types of sand blasting machine which is used for a variety of metals for cleaning, finishing, and smoothing. Also provide air blast equipment for precision surface finishing of all shapes and sizes.
