Cleaning internal surfaces of cylindrical surfaces
Roto Blast Tool with centering carriage (1 / 2 Nos.)
Portable Sand Blasting Machine
The small blast tool's purpose is to clean the insides of pipes and rounded surfaces. The tungsten carbide tip blasts in a 360° circular pattern.
The internal pipe cleaning tool, rather than a standard nozzle, connects directly to a 12" blast hose, and both the hose and the mini-blast are designed to fit on an abrasive blast machine.
We can easily access and clean round and circular-shaped machinery and parts with this tool.
With Internal Pipe Blasting Equipments we can remove corrosion, burrs, paint, and other impurities.

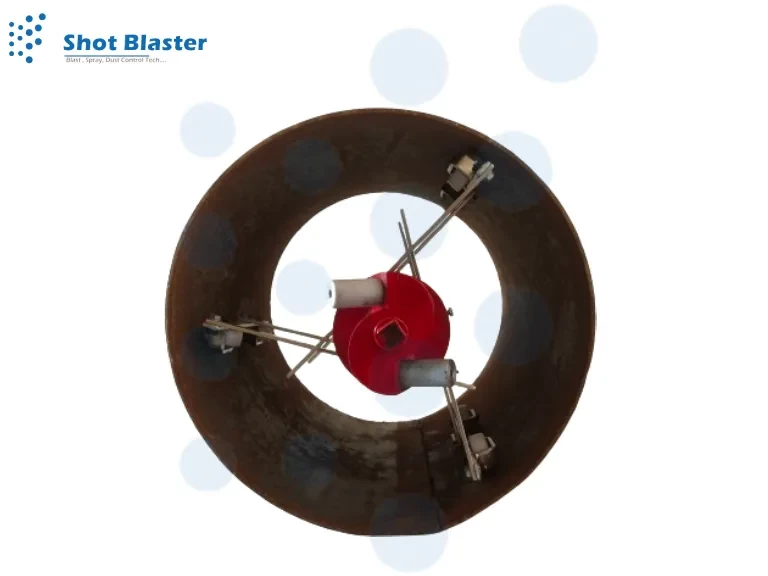

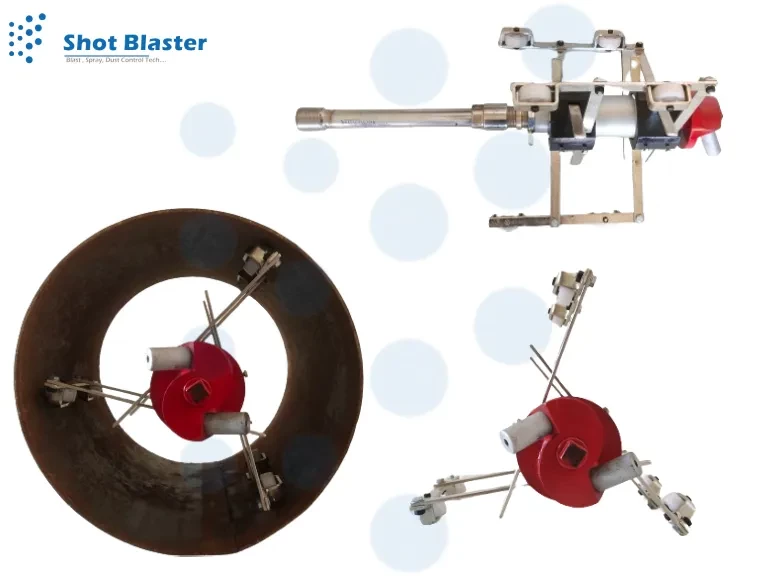

We are offering two pneumatic models of internal pipe blasting equipment used for cleaning inside the diameter of the pipe (ranging from 51-914mm) and up to 40 feet. These tools are easy to operate and no rotation of heavy pipes is required, hence saving time and expenditure. The tool is inserted into hollow pipes coupled with a portable blaster via a blasting hose and carried on the lightweight centering carriage, the tool is further pushed manually from one end to the other. Thus, a sand blasting machine is offered to eliminate old paints, unreasonable rust, carbon mill scale, etc. to achieve a white metal finish (ideal for further coating).
Internal pipe cleaning machine rapidly, successfully, and dependably eliminates consumption, dust, and other buildup from distant regions inside the funneling. The activity is straightforward: an impact pipe is fitted with a pipe instrument, and the device is removed from one finish of the cylinder to the next.
This sort of impacting equipment can not just clear the soil, scale, welding slag, and so on from the internal pipes, yet it likewise can diminish the internal surface pressure. Consequently, this sort of equipment can immeasurably build the help life of the steel pipe and decrease the internal consumption of the steel pipe, subsequently working on the natural and appearance nature of the steel pipe.
We offer exceptional Internal pipe impacting machines that work on the air impact guideline. The spear internal pipe impacting the spout is utilized for cleaning the inside surface of the pipe.
The machine can be given a delta and outlet transport and take care of the framework. The shot-impacted surface gives better holding than the last covering.
Technical specifications table
Nozzle Size (mm) No. of Nozzle
Pipe ID to be cleaned (mm) (inch)
Compressed air consumption (cfm) at 90psi
Approx. Weight (kgs.)
Note: specification may vary according to the customer's needs and requirements.
Features of Internal Pipe Blasting Equipment
360°shot blasting machine of the internal diameter of the pipe (2”-36” & 12 Mtr Length) for removal of any kind of contamination.
Non-rotation of heavy pipes.
Economic, efficient, and Light Weight for effortless handling.

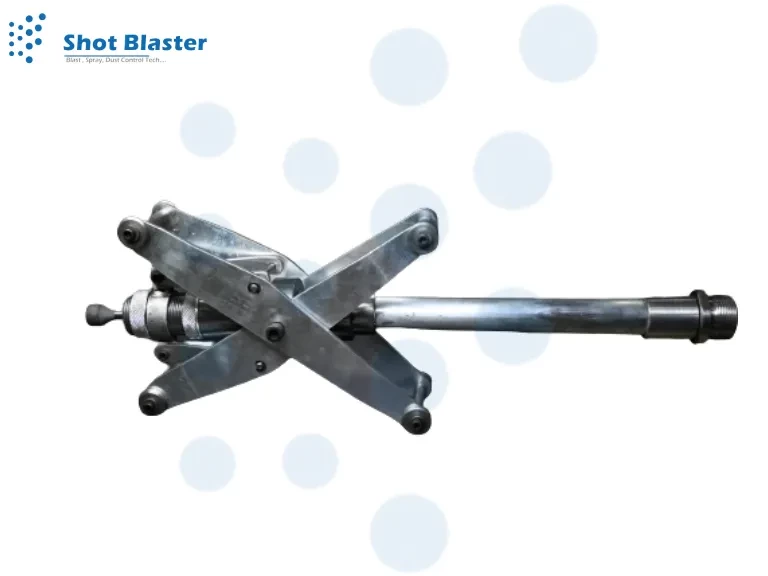

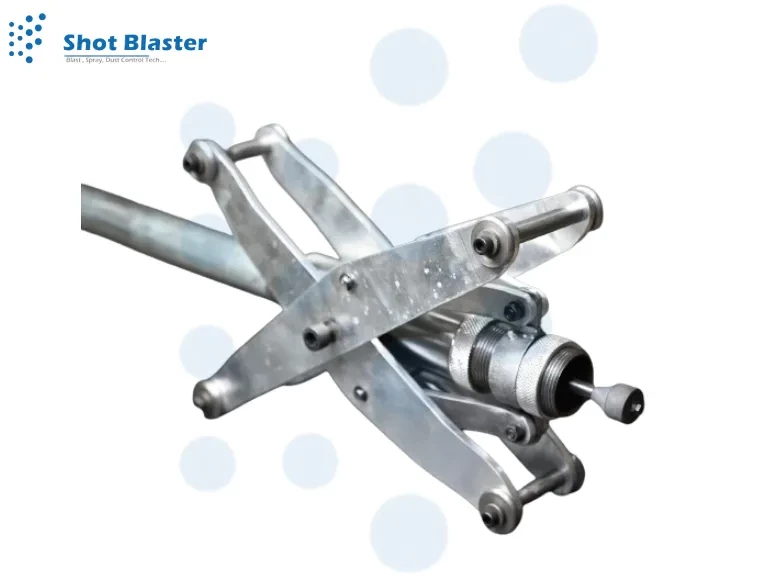

Supplied with a centering collar and adjustable centering carriage to suit a varied range of pipe diameters.
Supported any abrasive mesh 18-40 (except river garnet/sand, aluminum oxide, and silicon oxide).
Industrial applications: Refineries, Pipe Liners/Manufacturers, Shipyard Water, Gas, and Chemical Factories, etc.
Types of Internal Pipe Blasting Equipment
(I) pipe sand blasting equipment, SIPB
Ideal for small ID 50mm - 300mm.
No moving part cleans through the continuous circular motion of the blast stream
Obtained with the aid of the Tungsten Carbide deflector tip.
High-Quality TC parts, ensuring a longer life.
Light Weight (5 kg) for easy handling.
Centering Collars assist to increase range.
(II) pipe sand blasting equipment, SIPB (ROTO BLAST)

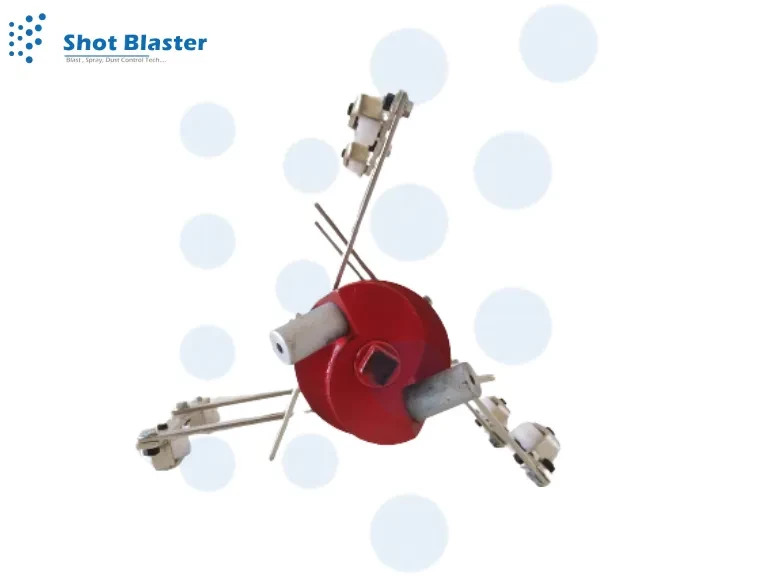

Regularly recognized as 'Rotoblast', rotating heads are driven via compressed air, carrying sand blasting nozzle positioned radially running at constant velocity to provide uniform and even blasting.
The Sand Blasting Machine comes with 3 leg support for better grip, a centering carriage, and two TC-lined nozzles.
Internal Pipe Blasting Equipment Coating
The Sand impacting machine orbiter applies a wide scope of coverage types effectively and equally to the inward distance across channeling, following the impact interaction. Set toward one side of the pipe and returned along its length, the Orbiter applies a steady layer of paint through a turning atomizing spout, guaranteeing in any event, covering. The Orbiter is fit with any accessible airless siphon and comes in the accompanying two sizes:
Orbiter I: for pipe measurements of 90 - 180 mm
Orbiter III: for pipe measurements 180 - 950 mm
