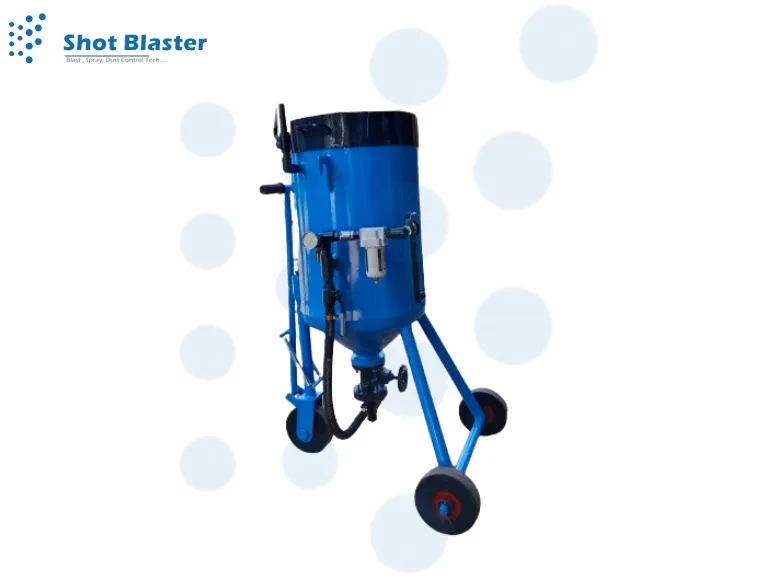

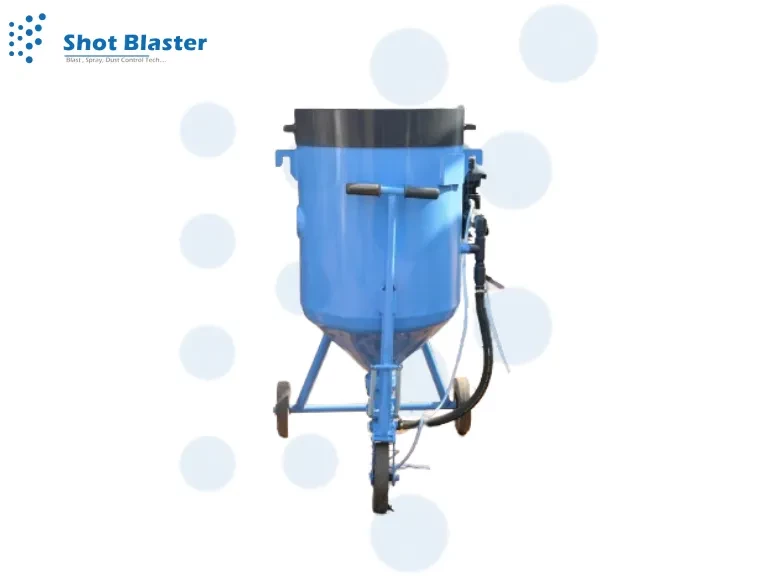

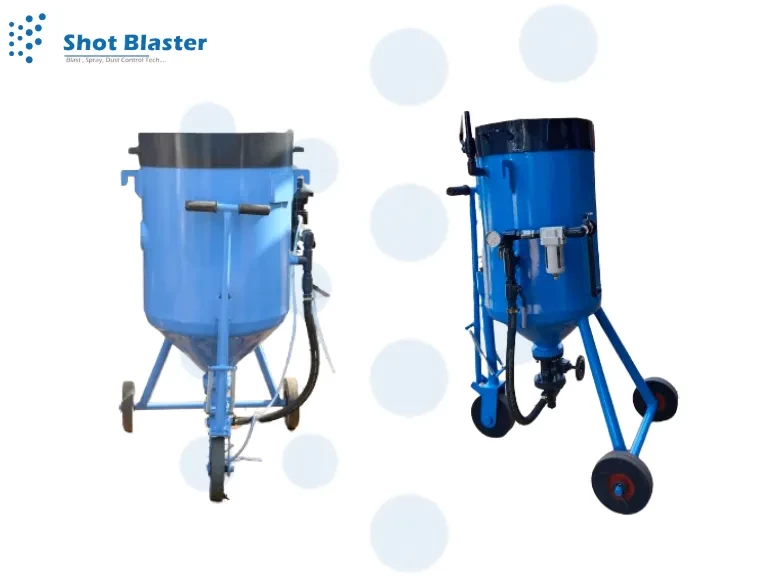

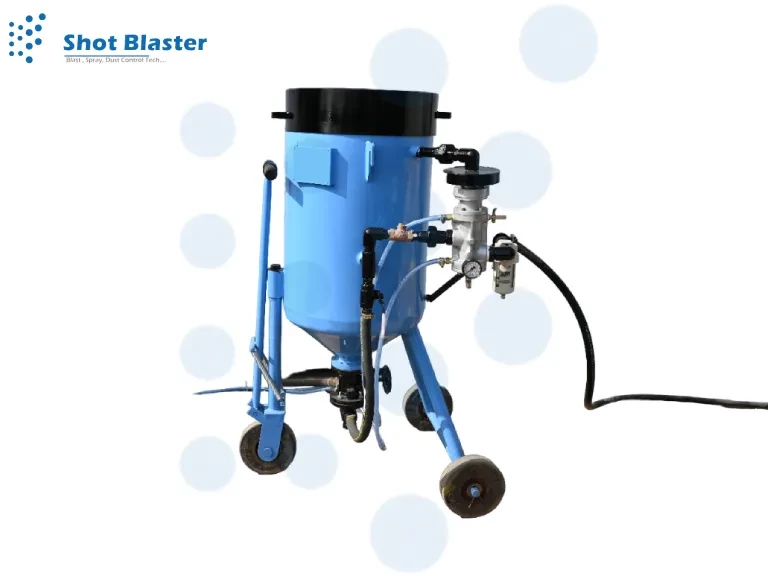

Portable Shot Blasting Machine also known as a shot blasting hopper is a machine that is moveable i.e. can be moved from one place to another depending upon its usage. That is why a portable shot blaster is also called a mobile shot blaster. It is a highly productive and safe system designed especially for an extensive range of abrasive media such as steel shots, copper slag, aluminum oxide, silicon carbide, and so on.
A Portable Shot Blasting Machines can be defined as one of the effective methods with which a surface can be shaped, cleaned, and smoothened and all foreign material is removed. It can be stationary or portable in nature. Stationary Shot Blasting Machine is done in cabinets or booths whereas the Portable Shot Blasting Equipment can easily shot blasting anything in the open area and sites, This is also known as a mobile shot blasting machine Equipment.
The material receives a completely new look and a better finish after the shot blasting. All nooks and corners get completely clean. This method involves air-operated shot blasting where very small materials or pieces are shoots at very high pressure in order to etch or clean or smooth them. Surfaces are mostly mild steel, stainless steel, Aluminum, glass, stone, and wood.
| Design | Standard |
| Material | Mild Steel |
| Height | Up to 5 feet |
| No of Wheel | 3 |
| Air Pressure | 0.4-0.8 MPa |
| Blasting time | 20-30 minutes |
A regulated stream of abrasive shot material is propelled towards the metallic or steel surface that needs to be shot blasted as part of this blasting procedure. A Abrasive shot blasting wheel is located in the center of the machine. As soon as the wheel starts to rotate, the metallic abrasives or shot media are channeled towards the center. From this point forward, the abrasives are accelerated and hurled in the direction of the surface being prepared for finishing.
The pollutants and media are redirected into a separation system that houses the dust collector system when this procedure is accomplished. The dust collector is responsible for collecting or eliminating crushed media, pollutants, or dust, as the name implies.
If the mushroom valve is opened the abrasive will get transferred to the blast generator for blasting. The toadstool valve is locked when compressed air is switched on and the abrasive storage tank becomes pressurized, for free fall of abrasive into the mixing tube. From the mixing tube, the abrasive is provided away by compressed air to the sand blasting nozzle for blasting. The residual media is recycled by returning it to the blasting hopper for storage, where the particles can be saved for future use.
The portable shot blasting machine consists of a blasting generator and works on the principle of a pressure blaster. The blasting operation can be performed on glass, metals, ceramics, and stones.
Different Parts of the Portable Shot Blast Machine
It has consisted of six different components:
Blast Wheel- Every centrifugal shot-blasting machine revolves around its wheel. The abrasive media steel shots, copper slag, aluminum oxide, & silicon carbide particles are aided by the wheels, which are propelled by centrifugal force from various types of turbine wheels. When the quality of the wheels is at its best, the efficiency, as well as the cleaning effect, are greatly enhanced.
Shot Blasting Cabinet- The cabinet, like the blast wheel, is an integral component of the shot blasting machine. Because of the rapid speed of the abrasive particles, they must be treated in a vibration-free, closed cabinet. These cabinets are produced with the assistance of top-quality steel material, which helps to ensure their strength and longevity.
Work Handling Mechanism- The majority of machine systems exist for conveying parts, which are dependent on the type, size, and quality of the objects to be treated. Table Type Shot Blasting Machine, Hanger Type Shot Blasting Machine, Tumb Type Shot Blasting Machine, Cabinet Type Shot Blasting Machine, Spinner Hanger Shot Blasting Machine, Spinner Hanger Double Door Type of Shot Blasting Machine, & Stone Shot Blasting Machine are some of the different types and designs of shot blasting machines that are used for different working processes.
Elevator- This item has a unique position in the machine and aids in the recovery of used abrasives, ensuring the machine's smooth operation. With the help of a screw conveyor, the abrasives are recovered at the base of the cabinet and transported to the base of the elevator, which subsequently transports the abrasives to the separator for further action.
Separator- In an abrasive blasting machine, the Separator is incredibly significant. This is a critical component that aids in the removal of all pollutants before abrasives are re-used in the blast wheel.
Dust Collector- This is the most crucial and last portion of the shot blasting machine. The dust collector is a component that is mostly used for filtration. This essential component helps in the removal of dusty air from the separator and dusty air trapped in the cabinet ventilation system, as well as the release of clean air into the atmosphere, maintaining a pollution-free environment.
Portable Shot Blasting Machine price in India depends on the size & type of machinery. We are the manufacturer, supplier, and exporter of portable shot blasting machines, sand blasting machine, and their components at a very low price in India. In India, Shot Blaster is the leading supplier of shot blasting machines.
We are is the leading Portable Shot Blasting Machine Manufacturer in India that offers the complete automatic shot blasting machine, abrasive sand blasting machine, grit blasting machine, sand blasting cabinet, shot blasting room, portable shot blasting machine, tumblast shot blasting machine, stone shot blasting machine, granite engraving machine, pipe cleaning blasting machine, thermal Spray Gun, Metalizing Gun, and abrasive media supplier with the R&D (Research & Development) at a low price.
All of our abrasive shot blasting machine, equipment is made with the highest quality standards. When testing our machines, our well-educated and experienced team follows all industry requirements. Meanwhile, all of their products are defect-free and meet BIS, ASTM, and SAE standards. So, for the best features and the best results, choose Shot Blaster's shot blasting machine.
