What is Shotblasting Cabinet ?

 Sep 09, 2022   Sand Blasting

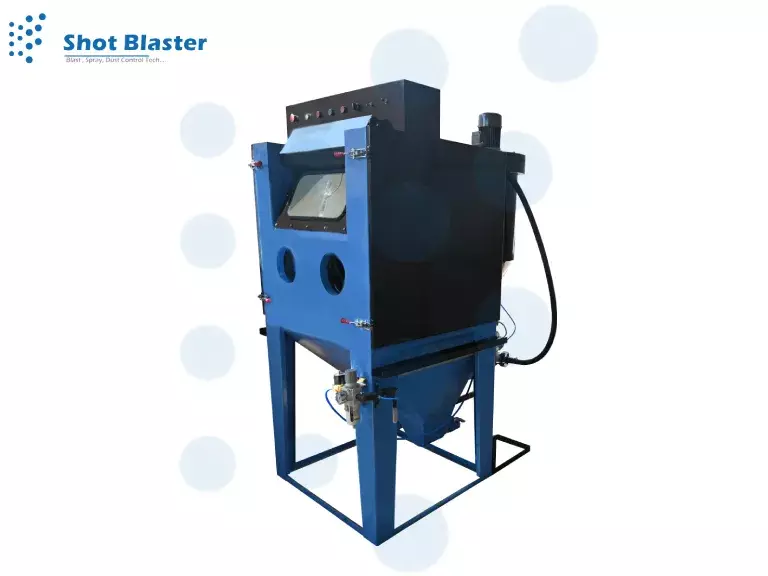

Shotblasting cabinet is a type of shot blasting machine which has a cabinet and is a closed form of the machine. In that closed portion blasting of contaminants as well as recycling of shot blasting grit gets the place. There are many other uses which are included like cleaning, recycling as well as the collection of dust particles too. In this shot blasting cabinet, there is a window from where the operator can see what is going on in the process; there is an opening door from where the blasting material or blasting surface is put inside the cabinet.

Shot Blasting Cabinet

Steel Shot Blasting cabinet with a removable viewing screen and internal lighting. Equipped with a shot blasting cannon and appropriate for proprietary glass brands Only beads, silicon carbide, aluminium oxide, and silica sand are permitted. Excellent for a wide range of cleaning tasks in the workshop and body shop. A regular, dry workshop air supply is required.

Shot Blasting Machine Specification

Capacity 0.09m³
Operating Air Pressure 60-90psi
Max Air Flow @ 80psi 12cfm
Air Inlet Size 1/4”BSP
Width/Depth/Height 640 x 490 x 490mm
Door Size (One) 530 x 440mm
Viewing Area 490 x 395mm

Shot blasting cabinets are perfect for shot blasting of small to medium-sized parts. The robust and yet compact design ensures that a minimum of space is needed for a shot blasting machine with high efficiency and safe working conditions.

Shotblasting cabinets have a high advantage in that you are able to shot blast items in a closed cabin. it does not make noise and dust outside the cabin. All our blast cabinets are provided with ventilation systems, meaning that the dust is separated from the blast media in a cyclone, and the exhaust air is filtered through a cartridge filter purifying continuously with compressed air. The dust is constantly removed from the cabinet and you always have a good view of the object to be prepared. The lighting on the subject is also of major importance.

As shot blasting grit is used as the abrasive media in the blasting method so it avoids visibility dust collectors are even connected with the shot blast cabinet. In the shot blast cabinet, the operator does not need any safety gadgets like a safety suit, mask or shot/ sand blasting helmet, shoes, blasting gloves, etc. actually the whole process is executed inside the shot blast cabinet. This makes an eco-friendly, cost-effective, and pollution-free environment. We provides sand blasting cabinet with dust collector.

For more information about sand blasting cabinet visit our website.

Shot blasting Cabinet Working

Connect the air supply to the intake on the shot blasting cabinet's side. Before connecting the air supply, make sure the gun valve is in the "off" position. Make sure there are no air leaks in any of the fittings. Pour the abrasive media into the cabinet's centre. Do not exceed 10 LBS (4.5kg). Excessive abrasive will reduce visibility, cause poor blasting performance, and may clog the air exhaust.

The equipment comes with four ceramic nozzles with hole diameters of 4, 5, 6, and 7mm. The size of the blasting media influences the nozzle selection. Fine media should be utilized with bigger nozzles and coarse media with smaller nozzles. Unscrew the sand blasting nozzle retaining ring, remove the old nozzle, and replace it with the new one. Connect the transformer to the mains socket and the transformer lead to the light switch box, and the unit is ready to use. Place the workpiece in the cabinet and securely close and latch the lid.

Turn on the light and the air supply, and put your hands into the shot blasting cabinet gloves. To begin blasting, grasp the gun and push the trigger. Continuously move the blast media (which resembles steam) in an even and circular manner over the workpiece. The flow should not be overly forceful or focused to avoid undesired peening. Depending on the size of the abrasive medium, the surface finish can range from coarse to fine. To minimize superfluous shot peening machine or undue abrasion on fragile workpieces, commence blasting with a modest airflow.

Types of shot Blast Cabinet

  • Suction Blasting Cabinet
  • Pressure Blasting Cabinet
  • Wet Blasting Cabinet

Shot blasting Machine Application

  • Fabrication Industry
  • Casting & Foundry Industries
  • Mould and Die Cleaning
  • Automobile Industries
  • Military (Remove Paint, Rust, Corrosion)
  • Aerospace Industries.
  • Railway

For more information about sand blasting machine visit our website.
